Internet access is no longer an option; it has become a requirement for everyone. Internet connection has its own set of advantages for an organization, but it also allows the outside world to communicate with the organization’s internal network. Visiting another website requires a connection to a specialized computer called a web server, which, like any other computer, can be targeted by hackers. They have the potential to infect the host computer with malware and start DDoS attacks when they connect to a foreign machine. That is where firewall configuration becomes helpful.

The Need to Configure Firewall?

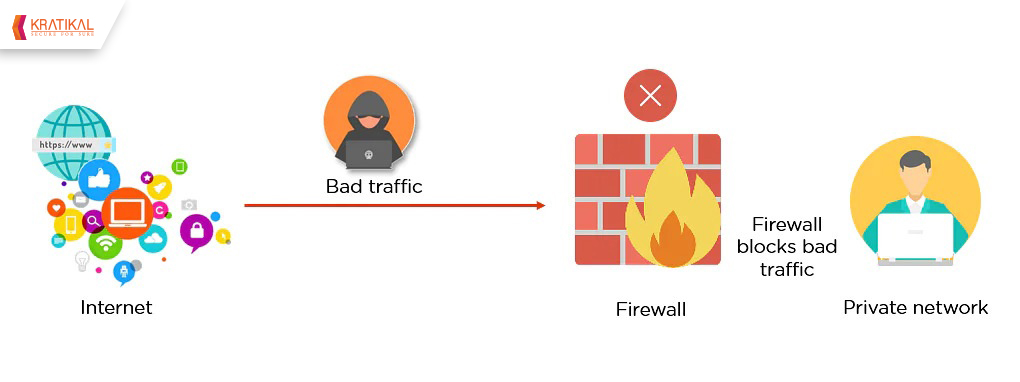

A firewall is a type of network security device that monitors and controls incoming and outgoing traffic. It can be either hardware or software. It allows, rejects, or blocks specific traffic based on a predetermined set of rules. It protects the network from both external and internal threats.

When encountering unauthorized traffic, a firewall runs a scan and tries to match the traffic with its defined set of rules. Once the network matches the set of rules, appropriate actions are taken for that specified network. If the incoming traffic is determined to be a security risk, the firewall prevents it from entering the internal network.

The vulnerability of networks connected to the Internet necessitates the use of firewalls. A third party can readily infiltrate and infect an unprotected network. The hacked website or server might be infected with malware once the hackers gain control of it. DDoS (Distributed-Denial-of-Service) attacks, which can force a website or server to crash, can render your network vulnerable if firewalls aren’t installed.

There are different ways to configure firewall to filter and control unauthorized traffic, such as:

• Packet Filtering

In this strategy, packets are formed of little pieces of data that are treated separately by firewalls. Packets trying to enter the network are checked against a set of rules. The packets that match a known threat are quarantined, while the others are allowed to proceed to their intended destination. This form of firewall has no way of knowing if the packet is part of an existing traffic stream. Packets can only be allowed or denied depending on their unique headers.

• Stateful Inspection

Stateful Inspection is a more advanced type of firewall filtering that looks at a variety of elements in each data packet and compares them to a database of reliable data. The source and destination of IP addresses, ports, and applications are among these factors.

To be allowed to get through to the internal network, incoming data packets must have the required information.

• Proxy Service

To safeguard network resources, the Proxy Firewall, also known as an Application Firewall or a Gateway Firewall, inspects incoming traffic at the application layer. It restricts the kind of applications that a network can support, which improves security but reduces functionality and performance.

A proxy server acts as a go-between, preventing direct connections between the two sides of the firewall. Each packet must pass via the proxy, which determines whether traffic is allowed to pass or is blocked based on the rules set forth.

• Next-Generation Firewalls (NGFW)

Next-generation firewalls (NGFWs) are used to guard against modern security threats such as malware and application-layer assaults. Packet Inspection and Stateful Inspection are combined in NGFW. To protect the network from modern threats, it also contains Deep Packet Inspection (DPI), Application Inspection, malware filtering, and antivirus.

A firewall is an important part of network security. Configure firewall to protect a company against cyberattacks and data breaches. Hackers can obtain unauthorized access to a protected internal network and steal critical information if the firewall is configured incorrectly. A properly configured firewall can protect an online server from harmful cyberattacks to the fullest extent possible.

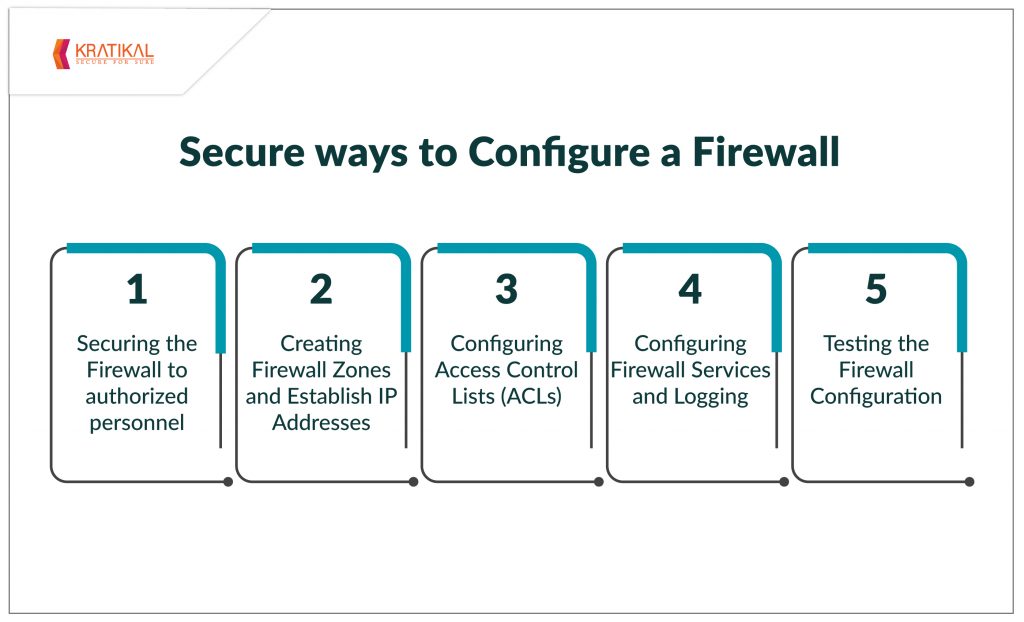

How to Configure Firewall?

A firewall setting is critical for ensuring that only authorized administrators have access to a network. The following actions are required:

• Securing the Firewall :

To ensure network security, it’s crucial to properly configure and maintain your firewall. Begin by securing the firewall so that only authorized personnel have access to the internal network. Make sure the firewall is updated to the latest firmware to protect against known vulnerabilities. A firewall should never be deployed into a production environment without proper configurations in place. Additionally, default accounts should be deleted, disabled, or renamed, and all accounts should use unique and complex passwords. Avoid using shared accounts managed by multiple administrators, as this can create accountability and security issues. Finally, disable the Simple Network Management Protocol (SNMP) to reduce potential attack surfaces.

• Creating Firewall Zones and Establishing IP Addresses

Decide which assets need to be safeguarded and map out your network so that these assets can be grouped together and assigned to different networks or zones based on their functions and sensitivity levels. The greater the number of zones you construct, the more secure the network will be.

However, managing more zones takes more effort, which is why assigning zones to firewall interfaces and sub-interfaces requires establishing associated IP addresses.

• Configuring Access Control Lists (ACLs)

Access Control Lists are used by organizations to determine which traffic is permitted to pass or is banned (ACLs). ACLs are the rules that a firewall uses to determine what actions should be taken in response to unauthorized traffic attempting to access the network.

The actual source and destination port numbers, as well as IP addresses, should be specified in ACLs. Each ACL should have a “Deny All” rule to allow organizations to filter traffic. The interface and sub-interface should both be inbound and outgoing to guarantee that only allowed traffic reaches a zone.

• Configuring Firewall Services and Logging

Other services, such as an Intrusion Prevention System (IPS), a Network Time Protocol (NTP) server, and others, can be built within some firewalls. It’s critical to turn off any firewall-supported extra services that aren’t in use.

• Testing the Firewall Configuration

It’s crucial to test your firewall settings once you’re confident it’s correct. Testing, such as Vulnerability Assessment and Penetration Testing (VAPT) is crucial for ensuring that the correct traffic is permitted to pass and that the firewall is working as intended. In the event that the firewall configuration fails during the testing phase, make a backup.

How Can Kratikal Help in Firewall Configuration?

As a CERT-In empanelled cybersecurity solutions firm, Kratikal provides a complete suite of VAPT testing services, one of which is Network Penetration Testing, a method of evaluating the external and internal security state of a network to detect and illustrate flaws present within the network.

The Network pentesting service at Kratikal  includes a variety of tasks:

1. Identifying, prioritizing, and quantifying the threats within the network.
2. Checking the control of security.
3. Analyzing the defenses against network-based attacks, such as brute-force attacks, and port scanning, among others.

Kratikal also offers Firewall Auditing. The assessment methodology includes proper planning and execution.

The steps followed are:

1. Security Configuration Review
2. Firewall Rule-set Review or ACL Review
3. Firewall Auditing Test Case
4. Reporting

The relevance of firewall setup to the security of our networks cannot be overstated. Firewalls protect our IT infrastructure, but they, too, require regular maintenance in order to perform correctly. A functioning firewall ensures that our networks remain healthy as well.
